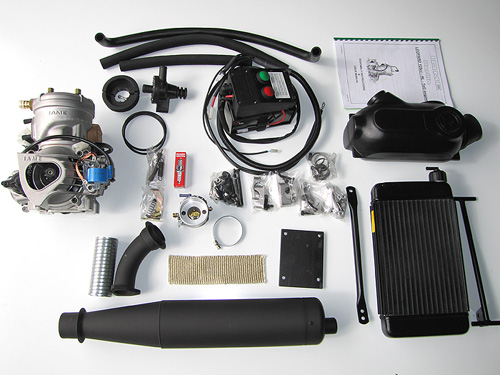

Parilla Leopard TaG standard features on new engine packages include: Leopard 125cc water cooled reed valve engine Electronic ignition with pick-up in the stator and generator for battery charging H.T. coil NGK BR10EG sparkplug and cap Centrifugal clutch group with 11 tooth detachable sprocket TILLOTSON HL 334 carburetor Silencer support w/ screws Exhaust bend Flexible exhaust hose w/ glass-fiber band Exhaust muffler Electric starting motor incorporated Starting motor transmission group Starting motor support Power-pack n.5a Electric wires in protective sheath Hermetically sealed 12V-7.2A/h battery Battery support w/ clamps Elastic fasteners Additional vibration-dampening engine plate Water-resistant cover for Power-pack

Included auxiliary equipment: Water radiator Radiator support kit Water pump group and pulley w/ universal mount Water tubing kit w/ clamps

Engine Specs:

• Cylinder volume: 123.67cm3
• Bore: 54mm
• Maximum bore: 54.28mm
• Stroke: 54mm
• Cooling System: Water
• Inlet System: Reed valve
• Carburetor: Tillotson HL 334A
• Cylinder/ crankcase transfers: 3
• Inlet/ exhaust ports: 2
• Number of piston rings: 1
• Big end conrod bearing diameter: 18x24x15
• Crankshaft bearing diameter: 25x52x15
• Small end conrod bearing diameter: 14x18x17.5
• Combustion chamber shape: Spherical
• Ignition: Selettra 4 pole
• Distance between conrod centers: 102mm
• Conrod material: Steel
• Crankshaft material: Steel
• Head material: Aluminum
• Cylinder material: Aluminum
• Liner material: Iron
• Crankcase material: Aluminum
• Piston material: Aluminum
• Piston ring material: Iron
• Exhaust muffler material: Sheet steel
• Conrod minimum weight: 119g
• Crankshaft assembly minimum weight: 1875g
• Combustion chamber volume: 9.5cm3
• Carburetor venturi size: 23.0mm
• Clutch minimum weight: 460g

Call 903-769-4140 for details and pricing.
